Rocket Kits


4" NXRS Research Test Vehicle kit $139.99
Available in single deploy and dual deploy versions. Dual deploy version includes our avionics bay kit, drogue chute, and extra tubular nylon harness. Note: dual deploy version adds 4" to total length of rocket.

DIAMETER : 4 inches
LENGTH : 85 inches
MOTOR MOUNT : 54MM
RECOVERY : 45 inch octagon with para-cord lines, mil-spec tubular nylon harness
GUIDANCE: Rail buttons, 3/16" premium aircraft plywood (10 plies!)
DECALS: Premium computer cut vinyl (5 year outdoor rated)
MOTOR RETENTION: Binder Design EZ Retainer

An exciting kit to commemorate the OROC NXRS 2014 launch in Brothers, Oregon on June 27,28,29. The NXRS RTV features all of the quality components that Binder Design is known for and comes with a CNC pre-slotted airframe and our modular fin can construction.


3" NXRS Research Test Vehicle kit $119.99
Our first 3" diameter kit!

Available in single deploy and dual deploy versions. Dual deploy version includes our avionics bay kit, drogue chute, and extra tubular nylon harness. Note: dual deploy version adds 4" to total length of rocket.

DIAMETER : 3 inches
LENGTH : 63 inches
MOTOR MOUNT : 38MM
RECOVERY : 36 inch octagon with para-cord lines, mil-spec tubular nylon harness
GUIDANCE: Rail buttons, 3/16" premium aircraft plywood (10 plies!)
DECALS: Premium computer cut vinyl (5 year outdoor rated)
MOTOR RETENTION: Binder Design EZ Retainer


4" Tyrannosaur Kit $149.99

DIAMETER : 4 inches
LENGTH : 85 inches
MOTOR MOUNT : 54MM
RECOVERY : 45 inch octagon with para-cord lines, mil-spec tubular nylon harness
GUIDANCE: Rail buttons, 3/16" premium aircraft plywood (10 plies!)
DECALS: Premium computer cut vinyl (5 year outdoor rated)
MOTOR RETENTION: Binder Design EZ Retainer

An exciting new kit, the Tyrannosaur is one mean rocket! The perfect addition to our lineup, the Tyrannosaur is destined to compete with our popular Velociraptor kit. The Tyrannosaur replaces our aging Samurai kit and features a preslotted airframe and our modular fin can construction.


4" Excelerator Kit $149.99

DIAMETER : 4 inches
LENGTH : 85 inches
MOTOR MOUNT : 54MM
RECOVERY : 45 inch octagon with para-cord lines, mil-spec tubular nylon harness
GUIDANCE: Rail buttons, 3/16" premium aircraft plywood (10 plies!)
DECALS: Premium computer cut vinyl (5 year outdoor rated)
MOTOR RETENTION: Binder Design EZ Retainer

This is what happens when we combine the Excel lower fins with the Raptor upper fins...The Excelerator! This exciting kit replaces our Raptor and features a pre-slotted airframe and our modular fin can construction.


4" Lightning Bolt Kit $139.99

DIAMETER : 4 inches
LENGTH : 85 inches
MOTOR MOUNT : 54MM
RECOVERY : 45 inch octagon with para-cord lines, mil-spec tubular nylon harness
GUIDANCE: Rail buttons, 3/16" premium aircraft plywood (10 plies!)
DECALS: Premium computer cut vinyl (5 year outdoor rated)
MOTOR RETENTION: Binder Design EZ Retainer

The Lightning Bolt features classic styling and timeless lines, this kit is sure to get attention at your next launch. This kit replaces our Sentinel rocket and includes a preslotted airframe and our modular fin can construction.


Excel 38mm $79.99

DIAMETER : 4 inches
LENGTH : 50 inches
MOTOR MOUNT : 38MM
PARACHUTE : 30 inches

The Excel is perfect for level 1 certifications! Pre-slotted airframe makes for an easy build along with all new fin-can instructions. Kit contains 3/16" aircraft grade plywood fins, plywood centering rings, and a high quality parachute. Now comes with motor retention and new decal package! H through K motors recommended.


Excel 54mm $89.99
Same as pictured above but comes with a 54mm motor mount.

Excel 38mm with Dual Deploy kit $129.99

DIAMETER : 4 inches
LENGTH : 71 inches
MOTOR MOUNT : 38MM
PARACHUTE : 36 inches

We've added the optional dual deploy kit to this popular classic. The dual deploy Excel is perfect for Level 2 certifications and features our popular avionics bay kit and extra recovery components to fly dual deploy. Pre-slotted airframe makes for an easy build along with all new fin-can instructions. Kit contains 3/16" aircraft grade plywood fins, plywood centering rings and bulkhead, and a high quality parachute. Now comes with motor retention! H through K motors recommended.


Excel 54mm with Dual Deploy kit $139.99
Same as pictured above, except comes with a 54MM motor mount.

Devastator 54mm Premium Kit
$179.99
Devastator
Add To Cart

DIAMETER : 3.9 inches
LENGTH : 61 inches
MOTOR MOUNT : 54MM
RECOVERY : 36 inch Binder Design Premium Chute, Stainless Steel Swivel, Tubular Nylon Shock Cord
FINS : 3/16" Aircraft Birch Plywood, with fin stiffeners
MOTOR RETENTION: Binder Design Motor Collar
GUIDANCE: Binder Design Delrin rail buttons
RECOMMENDED MOTORS: I through K

A military design by Bret Simpkins, the Devastator is one mean looking bird! One of our most complex kits in current production, the Devastator is a true modelers kit but our detailed 11 page instruction manual makes the construction easy to understand. Instructions include Rocksim stability data courtesy of Apogee Components. Includes an extensive vinyl decal package and delrin rail buttons for stable launches.

Designed for 54mm motors, but light enough to fly on 38mm motors with optional adapter.

Comes with 3/16" aircraft plywood fins, 20 feet of 3/8" tubular nylon shock cord, stainless steel chute swivel, and a Binder Design premium Chute. A machined aluminum motor retainer is included!

This new kit includes pre-slotted airframe for an easier build, and comes with a fin alignment guide!

This kit is a great Level 2 bird that gives very memorable flights on easy access J350 or J570 motors, or fly it on a K550 and watch it scream!

Devastator with Retro Decal Package
$189.99
Devastator2
Add To Cart
Now available with 60's era Air Force decals for those who like the vintage "retro" look.
Devastator Retro with Bell Nozzle option
$199.99
Add To Cart
Also available with aluminum bell nozzle as pictured above.
Galaxy premium kit
$179.99
Add To Cart

DIAMETER : 3.9 inches
LENGTH : 71 inches
MOTOR MOUNT : 54MM
RECOVERY : 60 inch Binder Design Premium X-Form Chute, Stainless Steel Bearing Swivel, Tubular Nylon Shock Cord
FINS : 3/16" Aircraft Birch Plywood
MOTOR RETENTION: Binder Design Motor Collar with Aluminum Nozzle Assembly
GUIDANCE: Binder Design Delrin rail buttons
RECOMMENDED MOTORS: I through K

Our second "Fisher Series" premium kit that comes with impressive upgrades! With its "retro" vinyl decal, brushed aluminum nozzle assembly, and nostalgic fin styling, the Galaxy is one classy bird! One of our most complex kits in current production, the Galaxy is a true modelers kit but our detailed 11 page instruction manual makes the construction easy to understand. Instructions include optional detailing tips as well as Rocksim stability data courtesy of Apogee Components. This kit also features a kit industry first.....Modular fin can assembly instructions!
Designed for 54mm motors, but light enough to fly on 38mm motors with optional adapter.
Comes with 3/16" aircraft plywood fins, 20 feet of 3/8" tubular nylon shock cord, stainless steel ball bearing chute swivel, and a Binder Design premium X-Form Chute. A machined aluminum motor retainer is included! Also includes delrin rail buttons for stable launches.
This kit includes pre-slotted airframe for an easier build, and comes with a fin alignment guide!
This kit is a great Level 2 bird that gives very memorable flights on easy access J350 or J570 motors, or fly it on a K550 and watch it scream!

California Kid premium kit
$159.99

DIAMETER : 3.9 inches
LENGTH : 68 inches
MOTOR MOUNT : 54MM
RECOVERY : 36 inch Binder Design Premium Chute, Stainless Steel Bearing Swivel, Tubular Nylon Shock Cord
FINS : 3/16" Aircraft Birch Plywood
MOTOR RETENTION: Binder Design Motor Collar with Aluminum Nozzle Assembly
GUIDANCE: Binder Design Delrin rail buttons
RECOMMENDED MOTORS: H through K

Our third "Fisher Series" premium kit that comes with impressive upgrades! Designed to pay tribute to the early High Power movement, the California Kid is a 4" dia. high power rocket with a nostalgic "retro" look. Comes with unique aluminum nozzle, aluminum motor retainer, and rail buttons! With its "retro" vinyl decals, brushed aluminum nozzle assembly, and nostalgic fin styling, the California Kid is one classy bird! One of our more complex kits in current production, the California Kid is a true modelers kit but our detailed 11 page instruction manual makes the construction easy to understand. Instructions include optional detailing tips as well as Rocksim stability data courtesy of Apogee Components. This kit also features a kit industry first.....Modular fin can assembly instructions!

Designed for 54mm motors, but light enough to fly on 38mm motors with optional adapter.

Comes with 3/16" aircraft plywood fins, 20 feet of 3/8" tubular nylon shock cord, stainless steel ball bearing chute swivel, and a Binder Design premium Chute. A machined aluminum motor retainer is included! Also includes delrin rail buttons for stable launches.

This new kit includes pre-slotted airframe for an easier build, and comes with a fin alignment guide!

This kit is a great Level 2 bird that gives very memorable flights on easy access J350 or J570 motors, or fly it on a K550 and watch it tear a hole in the sky!

Velociraptor Premium Kit
$199.99
Add To Cart

DIAMETER : 3.9 inches
LENGTH : 85 inches
MOTOR MOUNT : 54MM
RECOVERY : 45 inch Binder Design Premium X-STREAM Chute, Stainless Steel Bearing Swivel, Tubular Nylon Shock Cord
FINS : 3/16" Aircraft Birch Plywood
MOTOR RETENTION: Binder Design Motor Collar
DEPLOYMENT: Binder Design Modular Baffle System with Zipperless Design!
GUIDANCE: Binder Design Delrin rail buttons
RECOMMENDED MOTORS: I through K

A "Fisher Series" premium kit that comes with impressive upgrades! With its extensive vinyl decal package, sleek boat-tail, "talon" fins and aggressive styling, the Velociraptor one mean looking bird! Our most complex kit in current production, the Velociraptor is a true modelers kit but our detailed 11 page instruction manual makes the construction easy to understand. Instructions include optional detailing tips for the upper "talon" fins as well as Rocksim stability data courtesy of Apogee Components. Includes our new modular baffle system that converts any of our 3.9" rockets to a "zipperless" design, and includes delrin rail buttons for stable launches.

Designed for 54mm motors, but light enough to fly on 38mm motors with optional adapter.

Comes with 3/16" aircraft plywood fins, 20 feet of 3/8" tubular nylon shock cord, stainless steel ball bearing chute swivel, and a Binder Design premium X-STREAM Chute. A machined aluminum motor retainer is included!

This new kit includes pre-slotted airframe for an easier build, and comes with a fin alignment guide!

This kit is a great Level 2 bird that gives very memorable flights on easy access J350 or J570 motors, or fly it on a K550 and watch it scream!

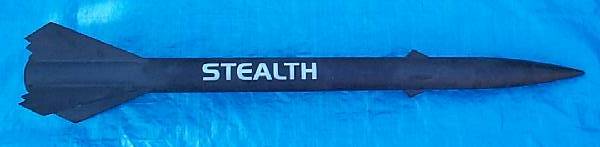

Stealth 38mm
$109.99
Add To Cart

DIAMETER : 4 inches
LENGTH : 67 inches
MOTOR MOUNT : 38MM
PARACHUTE : 36 inches
RECOMMENDED MOTORS : H-I

A Binder Design classic! Unique notched fin design. Comes with 3/16" thick aircraft plywood fins that are cut and match sanded. Plywood centering rings and bulkhead, plastic nose cone, and a high quality 36" chute. Vinyl decal, easy to follow instructions, fin alignment guide. Now includes mil-spec tubular nylon shock cord harness at no extra charge! H through J motors recommended.

Stealth 54mm
$119.99
Add To Cart
Same as pictured above except comes with a 54mm motor mount.

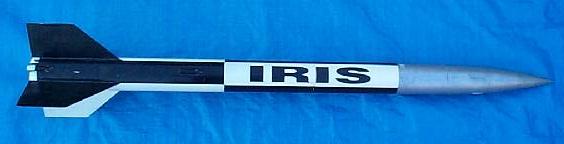

Iris 38mm
$109.99
Add To Cart

DIAMETER : 4 inches
LENGTH : 67 inches
MOTOR MOUNT : 38MM
PARACHUTE : 36 inches

This kit is a scale model of the Atlantic Research sounding rocket. Kit includes hints for optional surface detailing, plastic nose cone, aircraft quality 3/16" plywood fins, plywood centering rings and bulkhead, and detailed instructions. A super flying stable rocket.

Iris 54mm
$119.99
Add To Cart
Same as pictured above, except comes with a 54mm motor mount.
Jackhammer 38mm
$74.99
Add To Cart

DIAMETER : 3.9 inches
LENGTH : 33 inches
MOTOR MOUNT : 38MM
RECOVERY : 36 inch Binder Design Premium X-Form Chute, Tubular Nylon Recovery Harness
FINS : 3/16" Aircraft Birch Plywood
GUIDANCE: Binder Design Delrin rail buttons
RECOMMENDED MOTORS: H through J

Inspired by a popular video game series, this is our rendition of a shoulder launched missile of the future. This stout kit features unique military styling and decals, with a simulated armor piercing nosecone design. This sport kit was designed with short duration high thrust motors in mind but it can be flown on most 38mm motors. Tough and stout, this rocket is great for L1 certifications and is even tough enough for a J motor if you dare.
Instructions include Rocksim stability data courtesy of Apogee Components. This kit also features a Binder Design exclusive.....Modular fin can assembly instructions!
This kit includes pre-slotted airframe for an easier build, and comes with a fin alignment guide!

4" Dragonfly 38mm
$69.99
Add To Cart

DIAMETER : 3.9 inches
LENGTH : 34 inches
MOTOR MOUNT : 38MM
RECOVERY : 30 inch Binder Design Premium Chute, Tubular Nylon Recovery Harness
FINS : 3/16" Aircraft Birch Plywood
GUIDANCE: Binder Design Delrin rail buttons
RECOMMENDED MOTORS: H through J

An upscale of our most popular mid-power rocket, this Dragonfly is ready for high power. Unique X-Wing design with large span elliptical fins gives stable flights and eye-catching looks. Can be flown on most 38mm motors and is great for L1 certifications.
Instructions include Rocksim stability data courtesy of Apogee Components.
This kit includes pre-slotted airframe for an easier build, and comes with a fin alignment guide!

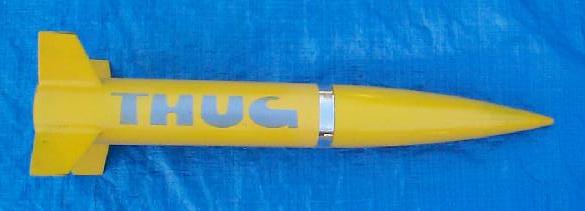

Thug 29mm
$54.99
Add To Cart

DIAMETER : 4 inches
LENGTH : 33 inches
MOTOR MOUNT : 29MM
PARACHUTE : 24 inches

A small rocket with big performance. You can fly it on as little as an E motor or throw an H-180 in it and watch it go. A real crowd pleaser, comes with cut and match sanded 1/8 inch aircraft grade birch plywood.

Includes plastic nose cone, easy to follow instructions, vinyl cut decals. A nice starter rocket to high power. (approx. empty weight 1lb. 6oz.)

Thug 38mm
$59.99
Add To Cart
Same as pictured above, except comes with a 38mm motor mount.
Bat 29mm
$64.99
Add To Cart

DIAMETER : 4 inches
LENGTH : 41 inches
MOTOR MOUNT : 29MM
PARACHUTE : 30 inches

The Bat is a very stable flying model and is a great small field performer! The Bat was designed for the beginner or sport flyer in High Power Rocketry, and is a super rocket for Tripoli and NAR certification flights. Kit includes cut and match sanded 3/16" aircraft grade plywood fins, plastic (Ogive style) nose cone, Computer cut vinyl decals so you can build as illustrated. Easy to follow instructions, fin alignment guide. G through I motors recommended. (approx. empty weight 2lb. 4oz.)

Bat 38mm
$69.99
Add To Cart
Same as pictured above except comes with 38mm motor mount.
